WORKING CONDITIONS

Clean Liquids Without Suspended Solids, Non-Aggressive

Liquid Temperature:0°C ~90°C Ambient Temperature:<40°C Maximum Pressure:LObar

Continuous Sercice :S1

Lnsulation:B

Protection:IP44

All-In-One Controller

Constant Pressure

Variable Speed Motor

Multiple Protection

Easy Operation

Saving Energy

Applications
For Water Supply From Wells Or Reservoirs
For Domestic Use,For Civil And Industrial Applications
For Garden And Irrigation



■ Max:Immersion Depth:Sm

■ Max:Liquid Temperature:+40t:

■ Liquid PH Value:5-9

■ Max.liquid Density:1.2x10 Kg/M

■ Max:Immersion Depth:Sm

■ Max:Liquid Temperature:+40t:

■ Liquid PH Value:5-9

■ Max.liquid Density:1.2x10 Kg/M

■ Suction lift up to 9m with foot valve.
■ Maximum operating pressure: 8 bar.
■ Maximum ambient temperature: +40℃ .
■ Liquid temperature up to +60℃ .
■ Maximum altitude +1000m.

■ Maximum operating pressure: 8 bar.
■  Maximum ambient temperature: +40℃ .
■ Liquid temperature up to +90℃ .
■ Maximum altitude +1000m.

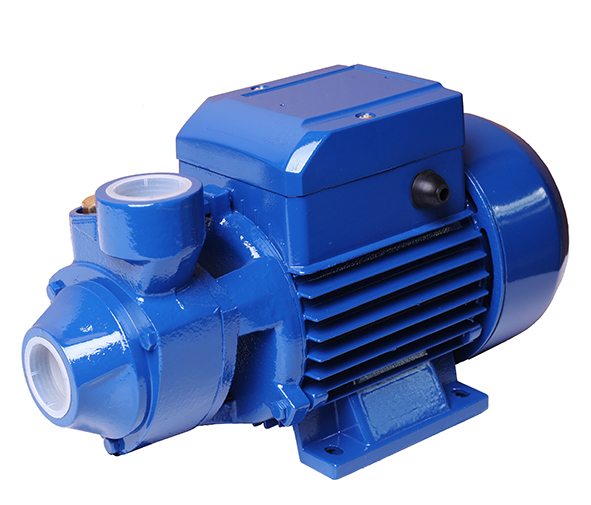

Pumps with peripheral impeller

Performance Range:

Flow rate up to 90 l/min (5,4 m³/h)

Head up to 100 m

Liquid type: clean water

Uses: domestic

Applications: water supply systems, pressure systems, irrigation pumps

Type: surface

Family: peripheral

Performance Range:

Flow rate up to 50 l/min (3,0 m³/h)

Head up to  70 m

Liquid temperature up to 60℃

Ambient temperature up to 40℃

Total suction lift up to 9m

Continuous duty

STP65 Series

Operating limitations

Max ambient temperature up to 40℃

Max fluid temperature up to 80℃

Max pressure up to 10 bar
